CFCouchbase SDK

Version 1.0.0

Contents

CFCouchbase SDK

CFCouchbase is a client library designed to make it easy for applications written in CFML (ColdFusion) to integrate with Couchbase Server for NoSQL and caching purposes. Here is a quick sample showing how easy it is to work with the Couchbase SDK.

// Create the client
client  = new cfcouchbase.CouchbaseClient();

// Create a document in the cluster
client.set( id='brad', value={ name: 'Brad', age: 33, hair: 'red' } );

// Retrieve that doc
person = client.get( id='brad' );

// Use the document
writeOutput( '#person.name# is #person.age# years old and has #person.hair# hair.' );

// Shutdown the client
client.shutdown();

Note: In our docs for the SDK we do not review the intricacies of Couchbase Server, for that please visit the official Couchbase server documentation site.



Interactive applications have changed dramatically over the last 15 years, and so have the data management needs of those apps. Today, three interrelated megatrends - Big Data, Big Users, and Cloud Computing - are driving the adoption of NoSQL technology. NoSQL is increasingly considered a viable alternative to relational databases... Couchbase

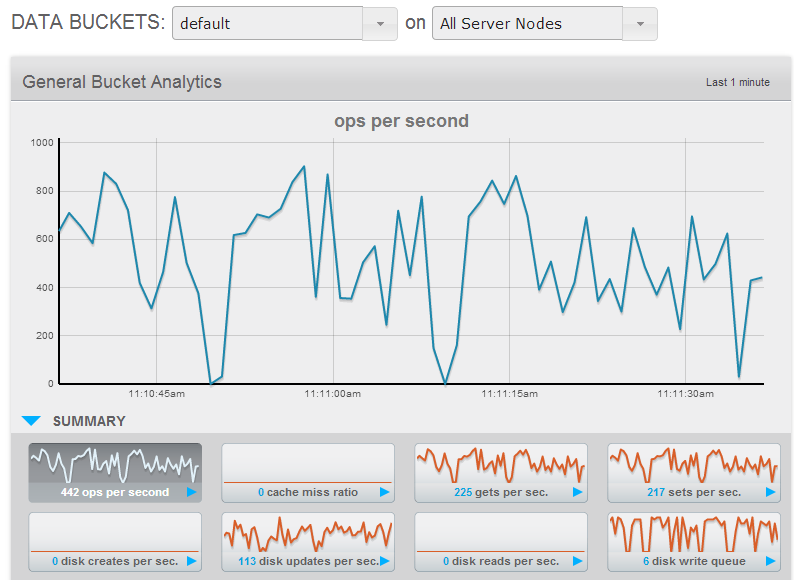

The web console of a Couchbase cluster

Requirements

Couchbase SDK Version

The Couchbase SDK Version used is 1.3.1

Features In A Nutshell

Installation

Download the SDK from our download page or visit our latest concoctions in Github, then unzip the file.



Note : The API Docs also have descriptions and code samples for every method. They are a must read as well!

The CFCouchase SDK is contained in a single folder. The easiest way to install it is to copy cfcouchbase in the web root. For a more secure installation, place it outside the web root and create a mapping called cfcouchbase.

this.mappings[ '/cfcouchbase' ] = 'C:\path\to\cfcouchbase';

Now that the code is in place, all you need to do is create an instance of cfcouchbase.CouchbaseClient for each bucket you want to connect to. The CouchbaseClient class is thread safe and you only need one instance per bucket for your entire application. It is recommended that you store the instantiated client in a persistent scope such as application when your app starts up so you can access it easily.

public boolean function onApplicationStart(){
	application.couchbase = new cfcouchbase.CouchbaseClient();
	return true;
}

However, we would recommend you use a dependency injection framework like WireBox to create and manage your Couchbase Client:

// Map our Couchbase Client via WireBox Binder
map( "CouchbaseClient" )
	.to( "cfcouchbase.CouchbaseClient" )
	.initArg( name="config", value={} )
	.asSingleton();

When you are finished with the client, you need to call its shutdown() method to close open connections to the Couchbase server. The following code sample will wait up to 10 seconds for connections to be closed.

public boolean function onApplicationStop(){
	application.couchbase.shutdown( 10 );
	return true;
}

Important: Each Couchbase bucket operates independantly and uses its own authentication mechanisms. You need an instance of CouchbaseClient for each bucket you want to interact with. It is also extremely important that you shutdown the clients whenever your application goes down in order to gracefully shutdown connections, else your server might degrade.

Configuration

The default configuration for CFCouchbase is located in /cfcouchbase/config/CouchbaseConfig.cfc. You can create the CouchbaseClient with no configuration and it will connect to the default bucket on localhost:8091. However, there are more ways to configure the Couchbase client via the config argument of the constructor so it can connect to your server and options of choice:

  1. Pass a config structure
  2. Pass a config CFC

Note : The config CFC is the most contained and portable way to store your configuration.

There are a number of configuration otions you can set for the client, but most of them can be left at their default value. To see a full list of options, look in the /cfcouchbase/config/CouchbaseConfig.cfc or the user friendly API Docs. Here are some of the most common setting you will need to use:

Common Config Settings

Setting Type Default Description
servers any http://127.0.0.1:8091 The list of servers to connect to. Can be comma-delimited list or an array. If you have more than one server in your cluster, you only need to specify one, but adding more than one will help in the event a node is down when the client connnect.
bucketName string default The bucketname to connect to on the cluster. This is case-sensitive
password string --- The optional password of the bucket.
dataMarshaller any --- The data marshaller to use for serializations and deserializations, please put the class path or the instance of the marshaller to use. Remember that it must implement our interface: cfcouchbase.data.IDataMarshaller

Config Struct

The simplest way to get started using the SDK is to simply pass a struct of config settings into the constructor when you create the client.

couchbase = new cfcouchbase.CouchbaseClient(
	{
		servers = ['http://cache1:8091','http://cache2:8091'],
		bucketName  = 'myBucket',
		viewTimeout = 1000
	}
);

Config CFC

The most portable method for configuring the client is to use a CFC to place your config settings in much like our other libraries such as WireBox and CacheBox allow. To do this simply create a plain CFC with a public method called configure(). Inside of that method, put your config settings into the variables scope of the component. The configure() method does not need to return any value. It will be automatically invoked by the SDK prior to the config settings being extracted from the CFC.

myConfig.cfc

component {

	function configure() {
		servers = ['http://cache1:8091','http://cache2:8091'];
		bucketName = 'myBucket';
		bucketName = 'myPass';
	}

}

To use the config CFC, simply pass it into the CouchbaseClient's constructor.

// You can pass an instance
couchbase = new cfcouchbase.CouchbaseClient( new path.to.config() );

// You can also pass a path to the CFC
couchbase = new cfcouchbase.CouchbaseClient( 'path.to.config' );

Usage

Whether you are using Couchbase for simple caching or as the NoSQL database for an application, your most common operations are going to be getting and setting data. Data is most commonly a JSON document, but can really be any string you want including binary representations of serialized objects.

For the comprehensive list of SDK methods, parameters, descriptions, and code samples, please look in the API Docs (in the download). Click on the cfcouchbase package and then the CouchbaseClient class.

Storing Documents

The easiest way to store a document in your Couchbase cluster is by calling the set() method. In this example we are passing a struct directly in as the value to be stored. The SDK will automatically serialize the struct into a JSON document for storage in the cluster.

client.set(
	ID = 'brad',
	value = { name: 'Brad', age: 33, hair: 'red', weird: true }
);

The ID of the document is brad and it will live in the cluster forever until it is deleted. If I want my document to expire and be automatically removed from the cluster after a certain amount of time, I can specify the timeout argument. This document will be cached for 20 minutes before expiring. Couchbase will automatically remove it for you once it has expired.

client.set(
	ID = 'cached-site-menus',
	value = menuHTML,
	timeout = 20
);

Note: The CFCouchbase SDK will try to be smart enough to translate any native CFML construct into JSON for you. You can also pass binary data or JSON as well. The SDK can also deal with CFC's to provide seamless CFC deserialization and inflation, please see the Data Serialization section.

Storage Durability

Couchbase autos-shards master and replica documents across your cluster out-of-the-box. Documents are stored both in RAM for fast access and persisted to disk for long term storage. By default, all storage operations are asynchronous which means the set() call returns potentially before the document is fully stored and replicated. So always remember that the majority of Couchbase operations on the SDK are asynchronous and return Java Future objects. This is a break from the consistency offered by a typical RDBMS, but it is key to the high-performance and scalable architecture. See the CAP Theorem

The call is still async but returns a Java future object. Calling the get() method on the future will wait until the operation is completed, so you can be guaranteed then about the results.

// This document will be persisted to disk on at least two nodes
future = client.set(
	ID = 'brad',
	value = { name: 'Brad', age: 33, hair: 'red' },
	persistTo = "TWO",
	replicateTo = "TWO"
);

// IMPORTANT: Wait for the operation to actually complete
future.get();

Note : All documents will eventually replicate and persist by themselves. You only need these options if the application cannot continue without it.



There are many other methods for storing data. Please check the API docs to see full descriptions and code samples for all of them. Here are a few to wet your appetite:

Retrieving Documents

The easiest way to retrieve a specific document by ID from your Couchbase cluster is by calling the get() method.

person = client.get( ID = 'brad' );

There are many other methods for getting data. Please check the API Docs (in the download) to see full descriptions and code samples for all of them.

Data Serialization

Couchbase can literally store anything in a bucket as long as it's represented as a string and no larger than 20MB. The CFCouchbase SDK will automatically serialize complex data for you when storing it and deserialize it when you ask for it again.

Simple Values

Before we tell how CFCouchbase serializes your data, we'll tell you how to avoid this behavior if you don't want it. Simple values (strings) won't be touched, so if you want to control how an array is serialized, just turn it to a string first and then pass it into set() operations. These strings can be JSON or anything of your choosing. When you retrieve these documents back, CFCouchbase will try to deserialize them for you automatically according to our rules you will see soon. However, if you want the raw data back from Couchbase as a string (regardless of how it was stored), pass deserialize=false into your get() or query() methods and CFCouchbase will not automatically deserialize it but just pass it back to you.

// Set my own JSON string
client.set( 'IDidItMyWay', '{ "title": "My Way", "artist": "Frank Sinatra", "year": "1969" }' );

// And get it back out as a string
song = client.get( id='IDidItMyWay', deserilize=false );

Complex Data

Complex data (structs, queries, arrays) will be automatically serialized for you with no extra work on your part. Just pass them into set() and you'll get the same data structure back from get() operation.

client.set( 'weekDays', ['Sunday','Monday','Tuesday','Wednesay','Thursday','Friday','Saturday'] );
days = client.get( 'weekDays' );
writeOutput( arrayLen( days ) );

query representation

{
  "recordcount": 3,
  "type": "cfcouchbase-query",
  "binary": "....",
  "columnlist": "ID,NAME"
}

Components (CFCs)

There are a lot of different ways to handle CFCs and we allow for several different methods of handling them that come with varying degrees of control and convenience.

Auto Inflation

You can annotate a CFC with autoInflate and CFCouchbase will be smart enough to detect the CFC's path and defined properties so it can store them in Couchbase. When storing the component, the data will be stored as a JSON struct along with some metadata about the component. When retreiving that document from Couchbase, a new component will be created with the inflated data. This is the easiest approach as it is completely seamless and pretty fast I might say!

Song.cfc

component accessors="true" autoInflate="true"{
	property name="title"  default="";
	property name="artist" default="";
}

Usage

funkyChicken = new path.to.song();
funkyChicken.setTitle( "Chicken Dance" );
funkyChicken.setArtist( "Werner Thomas" );

// Pass the CFC in
couchbase.set( 'funkyChicken', funkyChicken );

// And get a CFC out!
birdieSong = couchbase.get( 'funkyChicken' );

writeOutput( birdieSong.gettitle() );
writeOutput( birdieSong.getArtist() );

cfc data in couchbase

{
  "data": {
    "title": "Chicken Dance",
    "artist": "Majano",
  },
  "classpath": "model.funky.Song",
  "type": "cfcouchbase-cfcdata"
}

As you can see, this approach will allow you to still create views about your data in Couchbase if necessary and also provide a nice way to do CFC to Couchbase to CFC translations.

Manual Inflation

If you pass a CFC with properties but it does not have the autoInflate attribute like above, the data will still be stored as a JSON struct, but without the extra metadata about the CFC. When retrieving this document, you will just get a struct back by default. You can build a CFC yourself, or specify an inflateTo argument to instruct CFCouchbase on how to reinflate your data back to an object. You can pass in a component path (or component instance) and the SDK will instantiate that component and call its property setters to repopulate it with the data from Couchbase.

// path
person = client.get(
	ID = 'funkyChicken',
	inflateTo = 'path.to.song'
);

// instance
person = client.get(
	ID = 'funkyChicken',
	inflateTo = new path.to.Song()
);

If you need even more control such as performing dependency injection, passing construtor args to the CFC, or dynamically choosing the component to create, you can supply a closure that acts as a provider and produces an empty object ready to be populated.

person = client.get(
	ID = 'funkyChicken',
	inflateTo = function( document ){
		// Let WireBox create and autowire an instance for us
		return wirebox.getInstance( 'path.to.song' );
	}
);

If you are getting multiple documents back from Couchbase, your inflateTo closure will be called once per document.



Note : You can even use inflate to when retrieving result sets, or querying Couchbase views and you'll get an array of populated CFCs!

Custom

If you really want to get extra funky and control how your components are serialized, you can fall back on our conventions. If the CFC has a public method called $serialize(), it will be called and its output (must be a string) will be saved in Couchbase. The CFC can also have a public method called $deserialize( ID, data ), that if declared will be called and given the data so it can populate itself.

CustomUser.cfc

// CustomUser is an object that implements its own serialization scheme
// using pipe-delimited lists to store the data instead of JSON.  It has both
// a $serialize() and $deserialize() method to facilitate that.
component accessors="true"{

	property name="firstName";
	property name="lastName";
	property name="age";

	function $serialize(){
		// Serialize as pipe-delimited list
		return '#getFirstName()#|#getLastName()#|#getAge()#';
	}

	function $deserialize( ID, data ){
		// Deserialize the pipe-delimited list
		setFirstName( listGetAt( data, 1, '|' ) );
		setLastName( listGetAt( data, 2, '|' ) );
		setAge( listGetAt( data, 3, '|' ) );
	}
}

Usage

user = new CustomUser();
user.setFirstName( "Brad" );
user.setLastName( "Wood" );
user.setAge( 45 );

couchbase.set( 'half-pipe', user );

reinflatedUser = couchbase.get( id="half-pipe", inflateTo='CustomUser' );

writeOutput( reinflatedUser.getFirstName() );
writeOutput( reinflatedUser.getLastName() );
writeOutput( reinflatedUser.getAge() );
Binary

If you pass a CFC instance in that has no properties and no $serialize() method, CFCouchbase will use ColdFusion's objectSave() to turn the component into binary and it will be saved as a base64-encoded string.

Custom Transformers

If you don't like how we set up data serialization or just have super-custom requirements, you can provide your own data marshaller to have full control. Create a CFC that implements the cfcouchbase.data.IDataMarshaller interface. It only needs to have three methods:

interface{
	any function setCouchbaseClient( required couchcbaseClient );
	any function deserializeData( required string ID, required string data, any inflateTo="", struct deserializeOptions={} );
	string function serializeData( required any data );
}

myDataMarshaller.cfc

component implements='cfcouchbase.data.IDataMarshaller' {

	any function setCouchbaseClient( required couchcbaseClient ){
		variables.couchbaseClient = arguments.couchcbaseClient;
		return this;
	}

	string function serializeData( required any data ){
		if( !isSimpleValue( data ) ) {
			return serializeJSON( data );
		}
		return data;
	}

	any function deserializeData( required string data, any inflateTo="", struct deserializeOptions={} ){
		if( isJSON( data ) && deserialize ) {
			return deserializeJSON( data );
		}
		return data;
	}

}

After you have created your custom marshaller, simply pass in an instance of it or the full component path as a config setting:

// path
couchbase = new cfcouchbase.CouchbaseClient(
	{
		bucketName = 'myBucket',
		dataMarshaller = 'path.to.myDataMarshaller'
	}
);
// instance
couchbase = new cfcouchbase.CouchbaseClient(
	{
		bucketName = 'myBucket',
		dataMarshaller = new path.to.myDataMarshaller()
	}
);

Note : Once you specify a custom data marshaller, you are overriding all Data Serialization functionality above. So you are on your own now buddy! Like good 'ol spidey says: With Much Power Comes Much Responsibility!

Executing Queries

One of the most powerful parts of Couchbase Server is the ability to define views (or indexes) on your data and execute queries against your buckets of data. We do not cover all the basics and intricacies of views and indexes, for that please visit the official Couchbase Docs. We focus on how to leverage them from CFCouchbase. The minimum information you need to execute a query is the name of the design document and the view you wish you use.

results = client.query( designDocumentName='beer', viewName='brewery_beers' );

for( var result in results ) {
	writeOutput( result.document.name );
	writeOutput( '<br>' );
}

Here are the arguments you can pass into the query() method. For the latest and more in-depth information please visit our API Docs.



Argument Type Default Description
designDocumentName string --- The name of the design document in your Couchbase server
viewName string --- The name of the view to query from
options any {} The query options to use for this query. This can be a structure of name-value pairs or an actual Couchbase query options object usually using the newQuery() method.
deserialize boolean true If true, it will deserialize the documents if they are valid JSON, else they are ignored.
deserializeOptions struct --- A struct of options to help control how the data is deserialized when populating an object. See ObjectPopulator.cfc for more info.
inflateTo any --- A path to a CFC or closure that produces an object to try to inflate the document results on NON-Reduced views only!
filter function --- A closure or UDF that must return boolean to use to filter out results from the returning array of records, the closure receives a struct that has id, document, key, and value: function( row ). A true will add the row to the final results.
transform function --- A closure or UDF to use to transform records from the returning array of records, the closure receives a struct that has id, document, key, and value: function( row ). Since the struct is by reference, you do not need to return anything.
returnType any Array The type of return for us to return to you. Available options:
  • array default - Returns results as a CFML array of structs after applying deserialization, fitler and tranform functions.
  • native - Returns the underlying Java response object containing the results.
  • iterator - Returns a Java Iterator object containing the results.

Results

CFCouchbase will natively transform the data into an array of structs with a specific format. These keys are included in the struct that represents a row. This is the same struct that is returned in the result array and passed into the transform and filter closures.



Query Options

Here are some of the most common keys you can pass in the struct of options to control how the query is executed. Please check the API Docs for the full list.



Option Description
sortOrder Specifies the direction to sort the results based on the map function's "key" value. Valid values are ASC and DESC.
limit Number of records to return
offset Number of records to skip when returning
reduce Flag to control whether the reduce portion of the view is run. If false, only the results of the map function are returned.
includeDocs Specifies whether or not to include the entire document in the results or just the key names. Default is false.
startkey Specify the start of a range of keys to return.
endkey Specify the end of a range of keys to return.
group Flag to control whether the results of the reduce function are grouped.
keys An array of keys to return. For complex keys, pass each key as an array.
stale Specifies if stale data can be returned with the view. Possible values are:
  • OK - (default) - stale data is ok
  • FALSE - force index of view
  • UPDATE_AFTER - potentially returns stale data, but starts an asynch re-index.

// Return 10 records, skipping the first 20.  Force fresh data
results = client.query( designDocumentName='beer', viewName='brewery_beers', options={ limit = 10, offset = 20, stale = 'FALSE' } );

// Only return 20 records and skip the reduce function in the view
results = client.query( designDocumentName='beer', viewName='by_location', options={ limit = 20, reduce = false } );

// Group results (Will return a single record with the count as the value)
results = client.query( designDocumentName='beer', viewName='brewery_beers', options={ group = true } );

// Start at the specified key and sort descending
results = client.query( designDocumentName='beer', viewName='brewery_beers', options={ sortOrder = 'DESC', startKey = ["aldaris","aldaris-zelta"] } );

Filter Closure

You can specify a closure as the filter argument that returns true for records that should be included in the final output. This is a great way to filter out any unecessary documents you do not want in the end result array.

// Only return breweries
results = client.query(
	designDocumentName = 'beer',
	viewName = 'brewery_beers',
	filter = function( row ){
		if( row.document.type == 'brewery' ) {
			return true;
		}
		return false;
	}
);

Transform Closure

The transform closure will be called in each iteration as we build the native CF array of results. This can be used to normalize data, add or remove data, you name it.

results = couchbase.query(
	designDocumentName = 'beer',
	viewName = 'brewery_beers',
	deserialize = false,
	transform = function( row ){
		row.document = deserializeJSON( row.document );
	}
);

Return Type

You can ask the query() method to return an array default, a Java ViewReponse object, or a Java iterator. By default we use the native CFML array type which uses transformations, automatic deserializations and inflations.

// Get an iterator of Java objects
iterator = couchbase.query(
	designDocumentName = 'beer',
	viewName = 'brewery_beers',
	returnType = 'Iterator'
);

while( iterator.hasNex() ) {
	writeOutput( iterator.getNext().getKey() );
}

Managing Views

Views defined via JavaScript a map function that populates keys from the data in your bucket. Views can also define an additional reduce function that is used to aggregate data down, much like in SQL. Finally, one or more views live inside of a design document, which you can query and construct.

Please read more about views in the Couchbase Docs.

You can manage views and design documents from the Couchbase web console and you can also manage them programatically via CFCouchbase as well. Here's a list of some useful methods for view operations:

The really nice thing about saveView() and asyncSaveView() is they either insert or udpate an existing view based on whether it already exists. They also only save to the cluster if the view doesn't exist or is different. This means you can repeatedly call saveView() and nothing will happen on any call but the first. This allows you to specify the views that you need in your application when it starts up and they will only save if neccessary:

// application start
public boolean function onApplicationStart(){
	application.couchbase = new cfcouchbase.CouchbaseClient( { bucketName="beer-sample" } );

	// Specify the views the applications needs here.  They will be created/updated
	// when the client is initialized if they don't already exist or are out of date.

	application.couchbase.saveView(
		'manager',
		'listBreweries',
		'function (doc, meta) {
		  if ( doc.type == ''brewery'' ) {
		    emit(doc.name, null);
		  }
		}',
		'_count'
	);

	application.couchbase.saveView(
		'manager',
		'listBeersByBrewery',
		'function (doc, meta) {
		  if ( doc.type == ''beer'' ) {
		    emit(doc.brewery_id, null);
		  }
		}',
		'_count'
	);

	return true;
}

Working with Futures

You have probably noticed that all the asyncronous operations in the SDK return a Java OperationFuture object. This allows control of your application to return immediately to your code without waiting for the remote calls to complete. The future object gives you a window into whats going on and you can elect to monitor the progress on your terms-- deciding how long you're willing to wait-- or ignore it entirely in order to complete the request as quickly as possible.

The most common method is get(). Calling this will instruct your code to wait until th eoperation is complete before continuing. Calling future.get() essentially makes an ansynchronou call syncronous.

future = client.asyncGet( ID = 'brad' );
person = future.get();

OperationFutures are parameterized which means they can each return a different data type from their get(). Check the API Docs to see what each asynchronous future returns.

Note : Operations are always subject to the timeouts configured for the client regardless of how you interact with the future.

Here are some other methods you can call on a future to handle the response on your terms:

More information on Futures is available here in the Java Docs: OperationFuture

Help & Support

If you need any community help related to our CFCouchbase SDK, you can use our online help group at http://groups.google.com/a/ortussolutions.com/forum/#!forum/cfcouchbase . If you need any type of professional services around our CFCouchbase SDK like training, consulting or professional support then please contact us at consulting@ortussolutions.com or visit us at www.ortussolutions.com.
